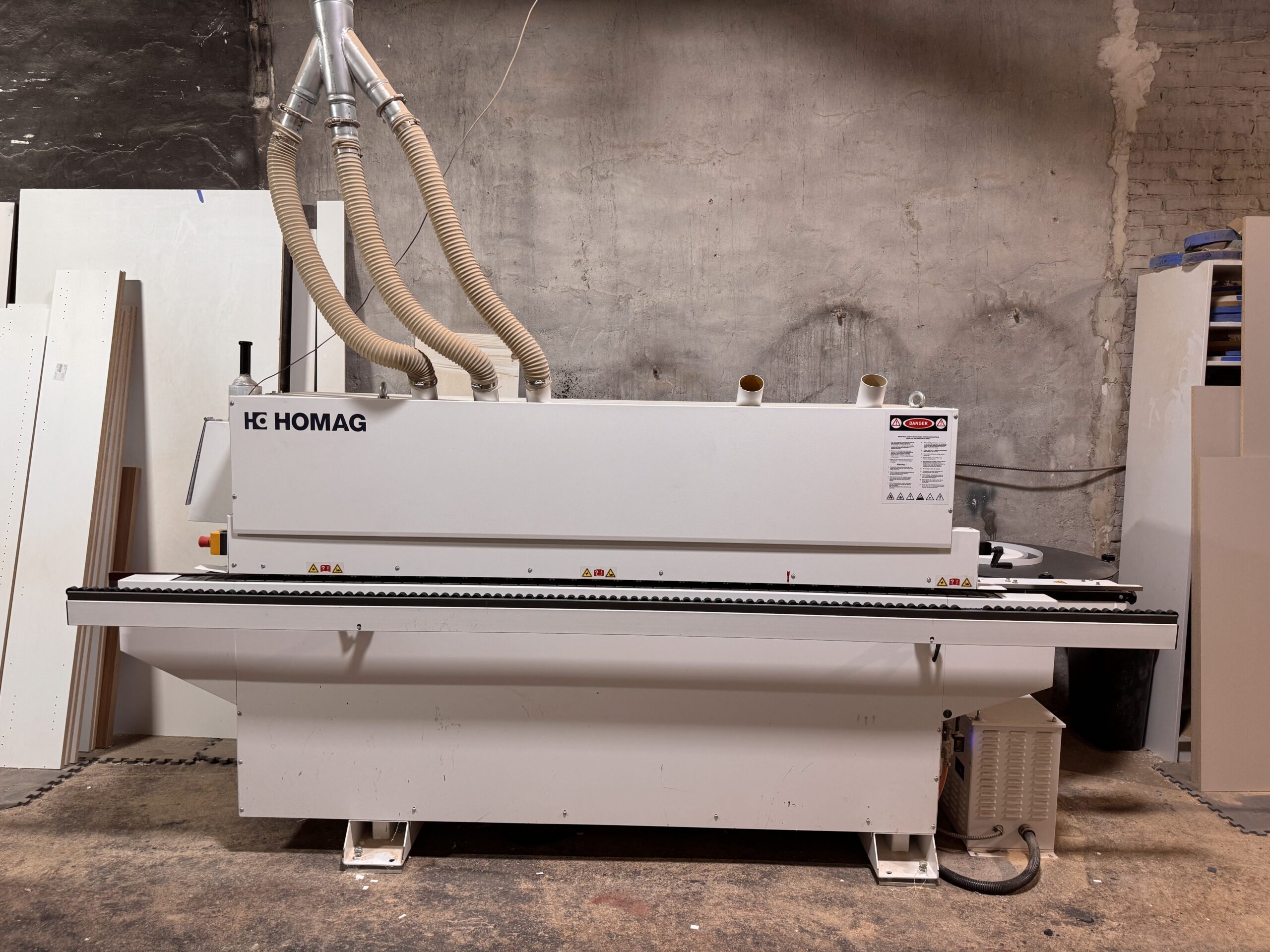

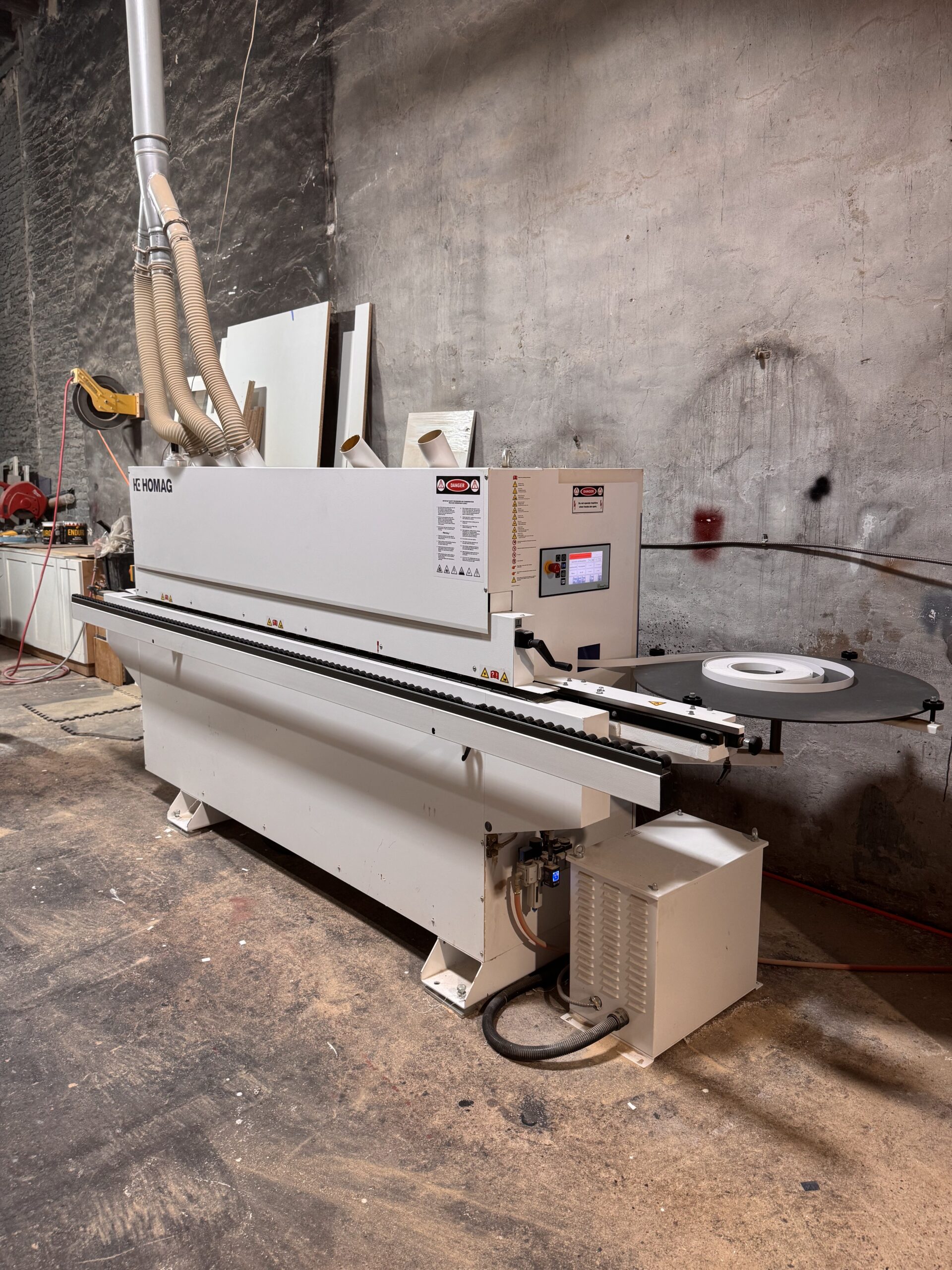

2020 HOMAG S-200 B Single-Sided Edgebander

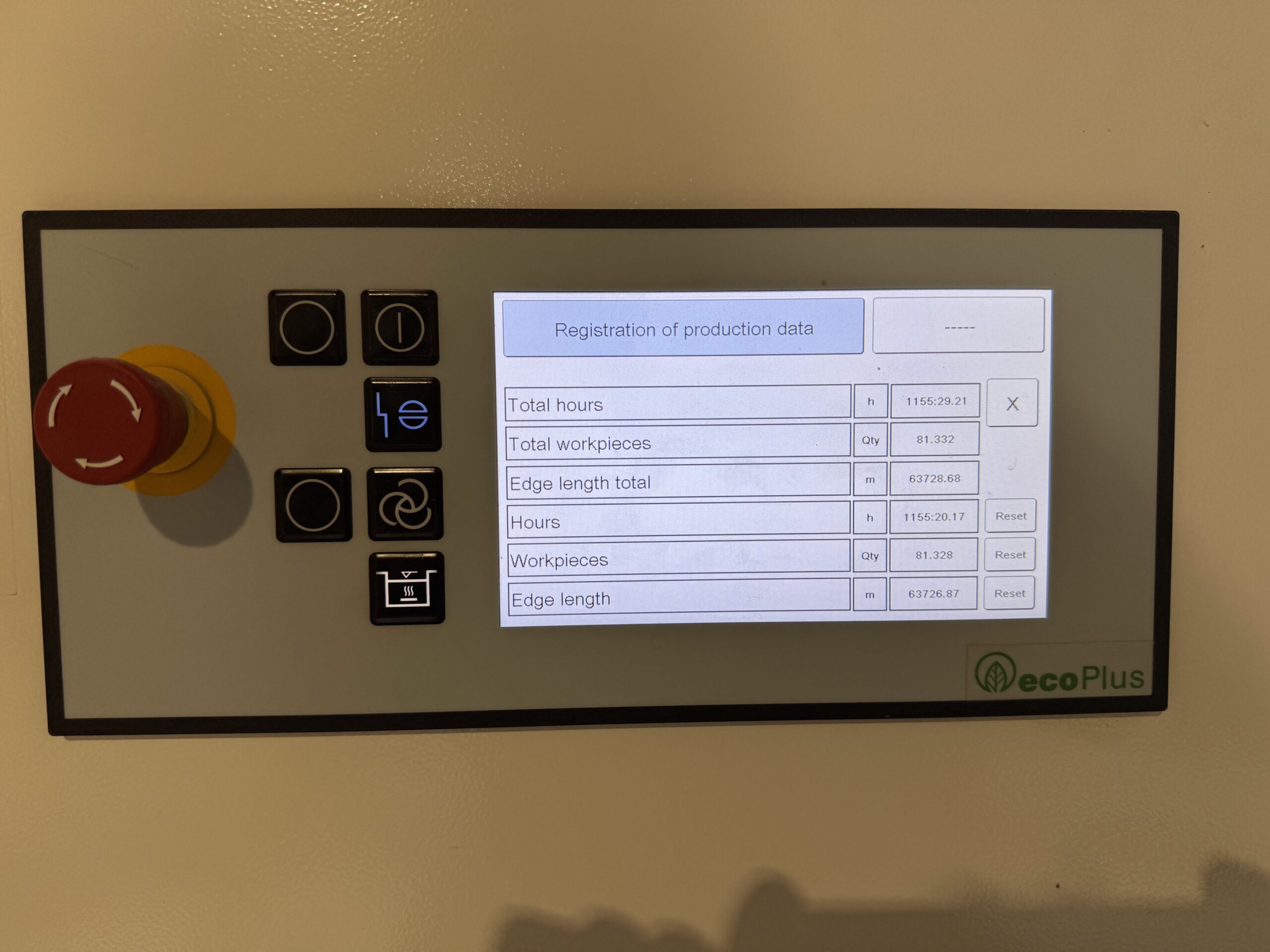

-easyTouch Program Control
-electrical equipment installed according to UL regulations
-heavy machine frame construction with heavy-duty feed track design
-control panel located at machine infeed for operator convenience
-adjustment on pressure beam and infeed fence via digital height indicator
-integrated electronic line control system for increased reliability and diagnostic assistance – no limit switches used for setting operating units
-universal automatic magazine for strip and coil feeding
-large coil table (800 mm diameter) to accommodate large coils of 3 mm PVC
-feed speed: 8 m/min (26 ft/min)
-workpiece thickness: 40 mm
-automatic height adjustment with top pressure beam for all work stations
-standard hot melt granulate glue application system with no lubrication needed
-automatic temperature reduction feature lowers the glue temperature if no workpiece is run over a 15-minute span (reheating accomplished in three minutes)
-first pressure roller driven and two (2) idle pressure rollers with digital setting system
-Double-Motor End Trimming Unit mounted on linear guides for precision trimming
-Top and Bottom Fine Trimming Unit equipped with DFC cutter heads (indexed horizontally for more use of insert width), with combination radius / straight carbide inserts. Digital readouts provided. Three (3) working positions: flush trimming, trimming with overhang, and radius / bevel trimming. (R = 3 mm)
-OPEN SPACE: Possibility of adding Quick-Change Profile Scraping Unit
-Buffing Unit with two (2) motors, two (2) cloth buffing discs (150 x 20 mm diameter)
-sound enclosure with window
-extendable workpiece support track
-electronic frequency changer for all trimming motors – including electronic motor braking
-isolation transformer with variable infeed voltage for balancing all three (3) phases of incoming power and increasing the lifetime of the machine’s electrical components
