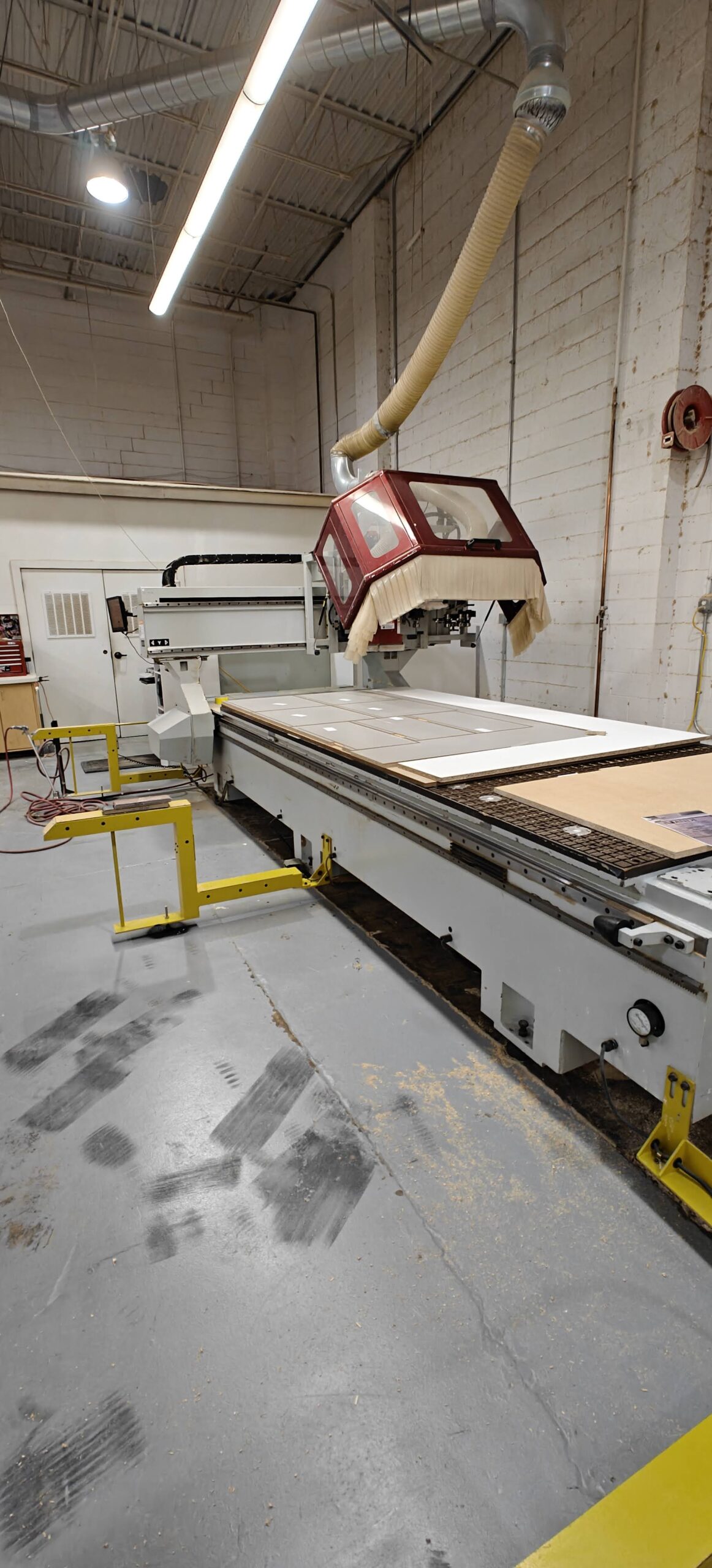

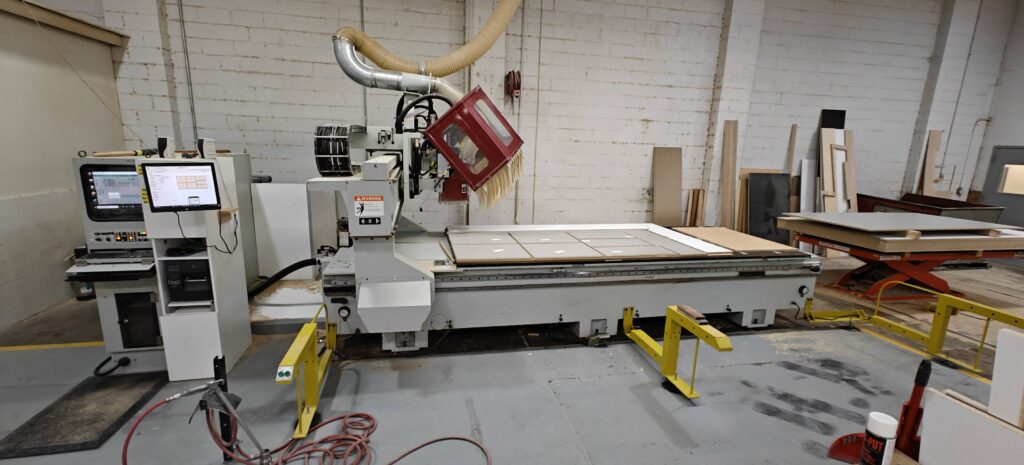

Anderson Stratos Pro-E 5 X 12 Flat Table CNC Router
5′ x 12′ Grid table w/ double-zone phenolic vacuum plenum. (11) pop-up pins for part location within the table & (3) around the table perimeter for nested base manufacturing.

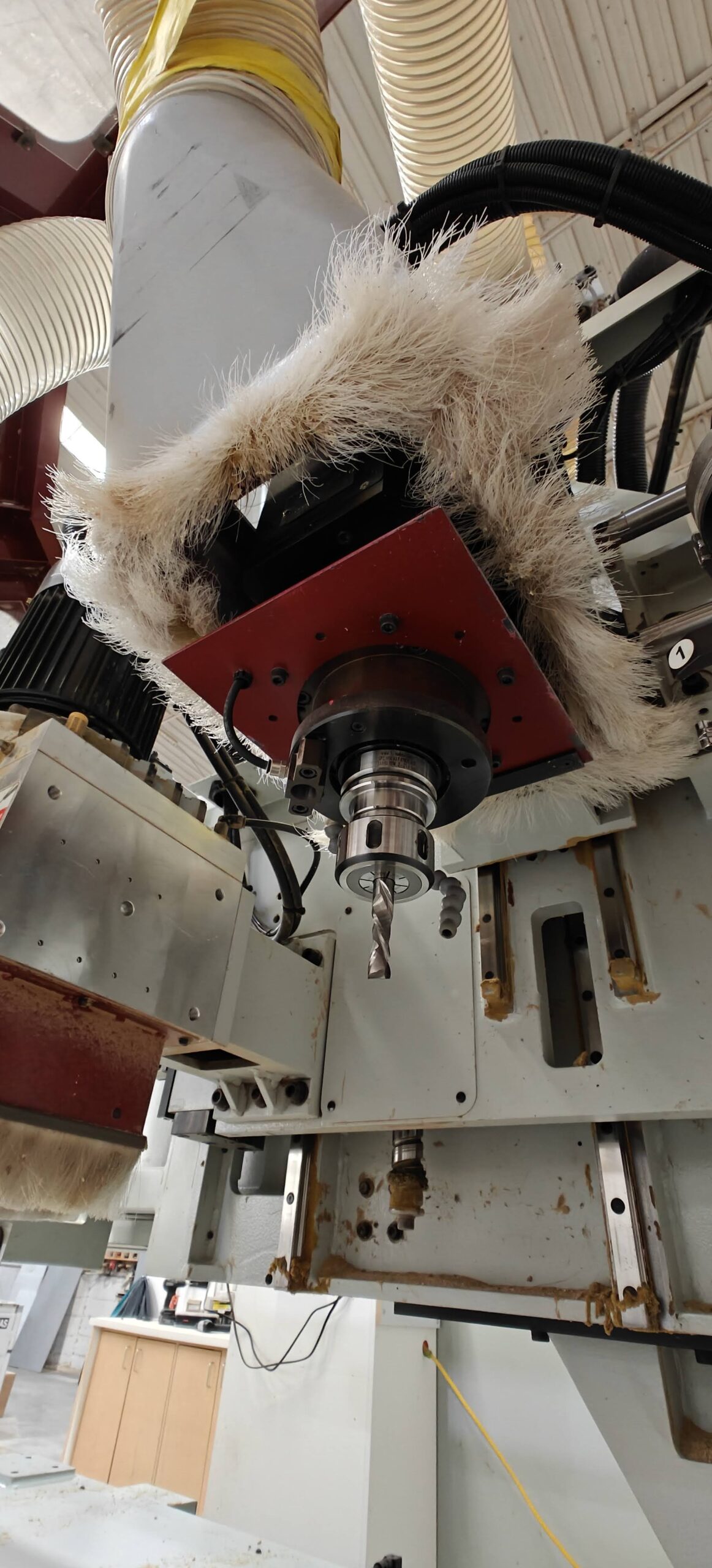

15 HP HSK-63F Type grease lubricated spindle, 1,000 – 24,000 RPM

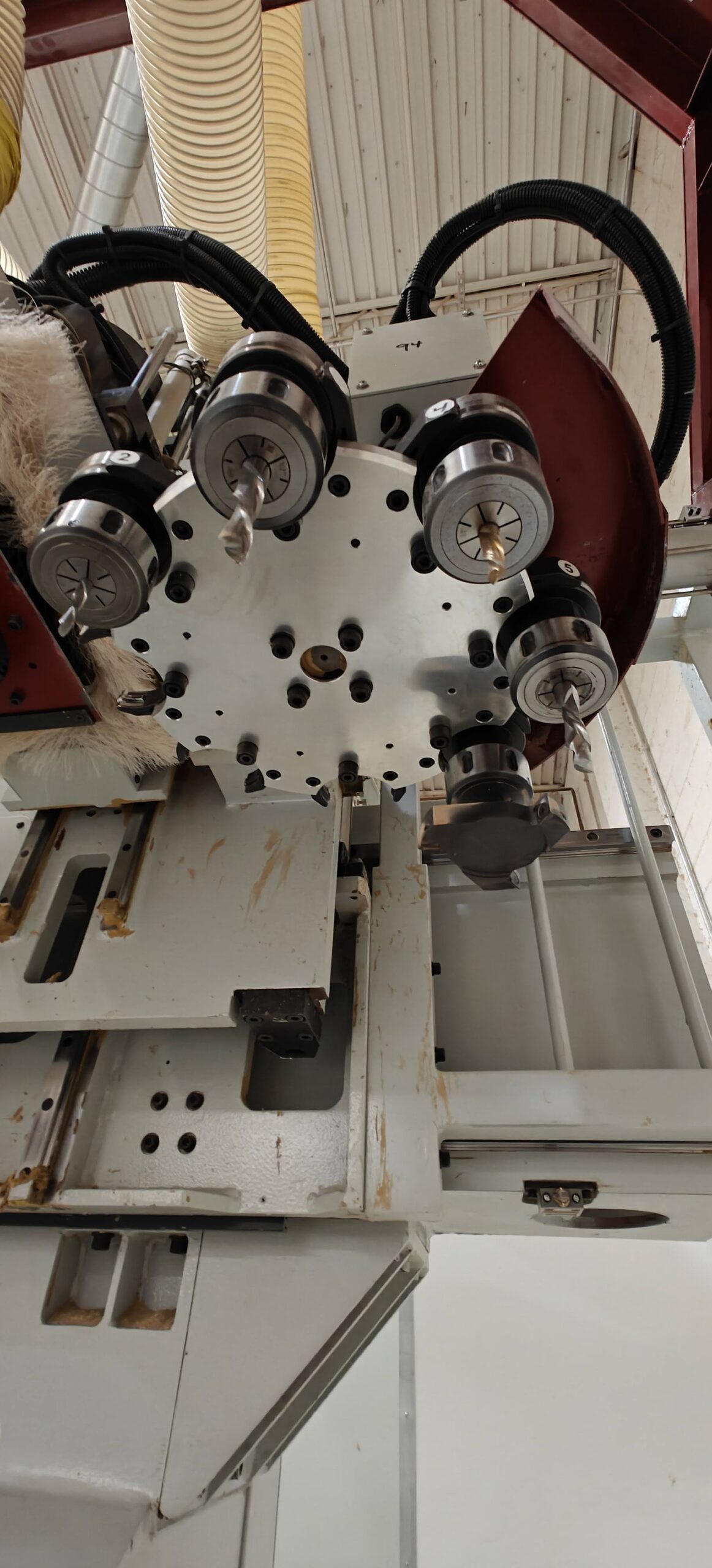

ATC with 10-station tool carousel

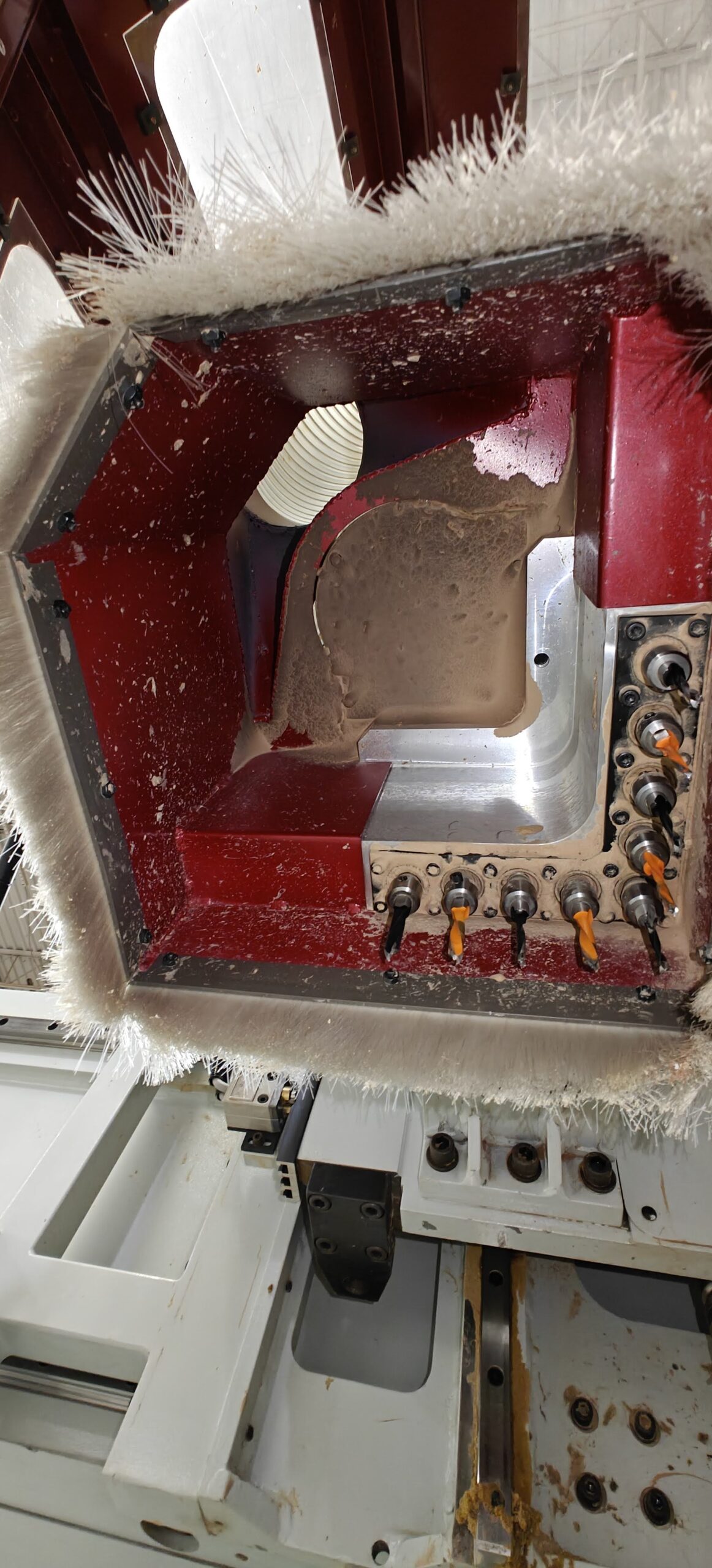

9 Spindle L-shape vertical drill block
Control and Motion;

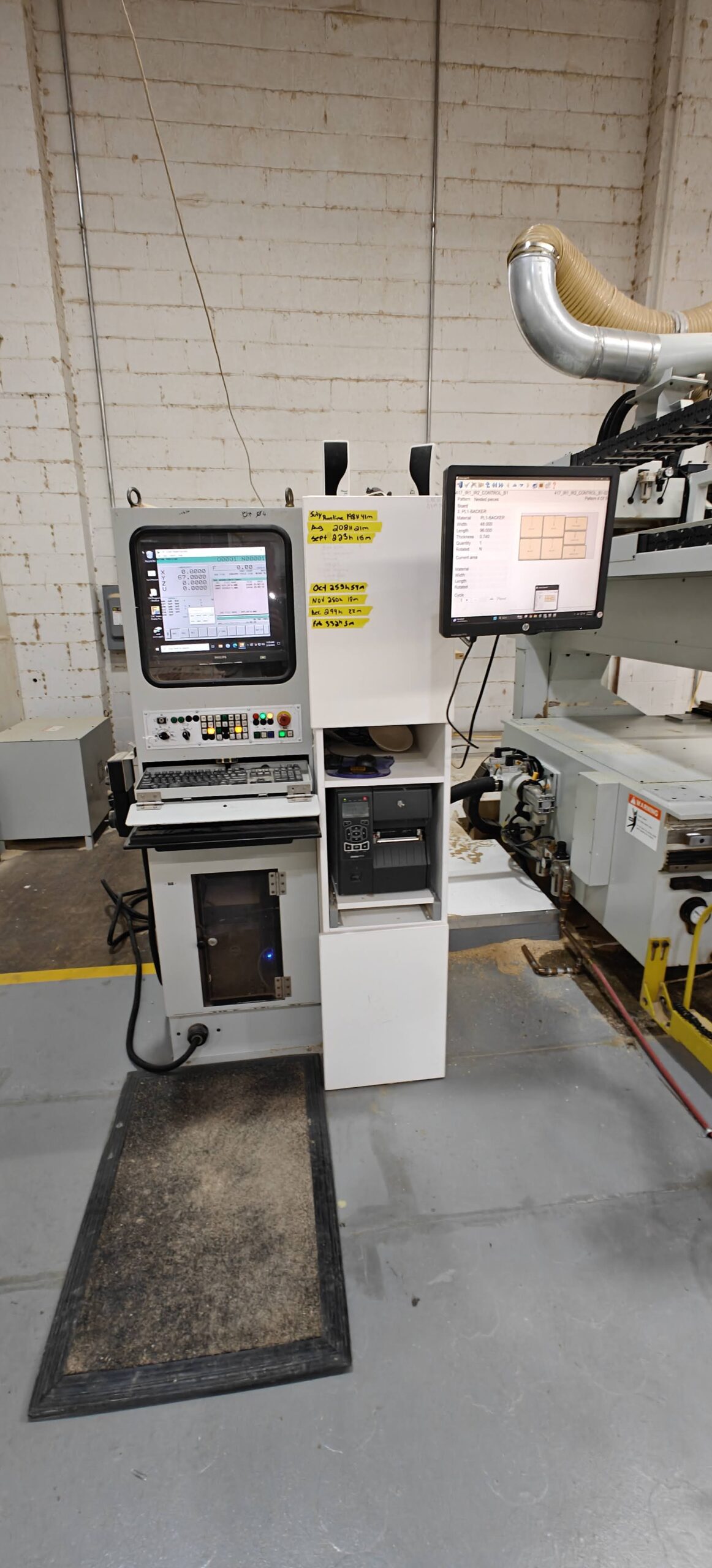

FANUC “0i” CNC PC front system with PC WINDOWS XP & PLC control; color monitor, large hard disk for program storage, USB and RS-232 interface.
Fanuc brushless AC Servo motors. The X-axis is driven by twin synchronous helical rack & pinion drive, and the Y- & Z-axis by precision ground ball screws with anti-lash ball nuts. All axes ride on STAR linear guides & recirculating linear roller bearing’s for rapid feed rates up to 3,150 IPM on the X-axis, 2,362 IPM on the Y-axis and 1,181 IPM on Z-axis.
Motion components have automatic lubrication system.
Includes: 2- Becker 10hp Vacuum pumps.
| Machine Model | Anderson 5X12 Pro-E |
| Machine Type | Flat Table CNC Router |

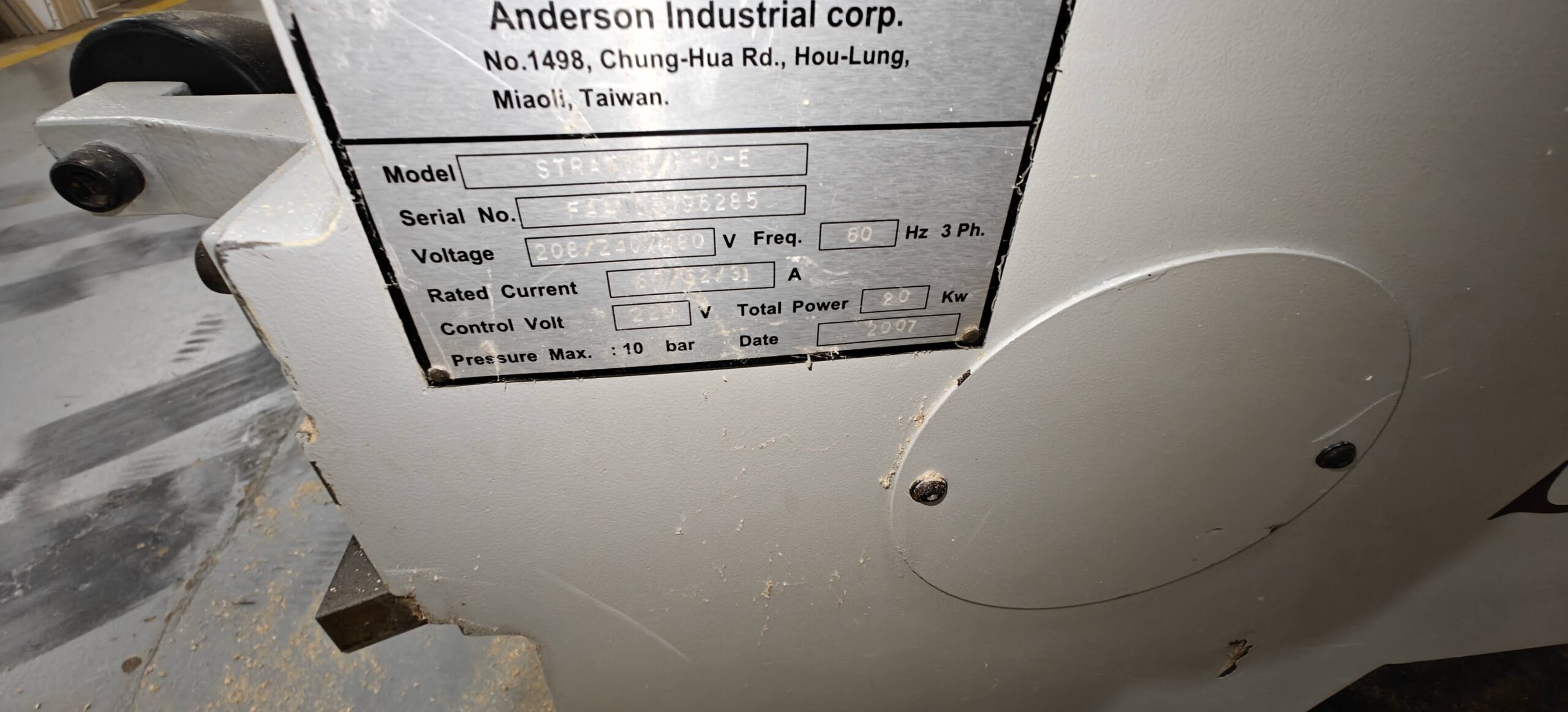

| Serial Number | ST96285 |
| Year | 2007 |
- VERY GOOD CONDITION
- MACHINE SOLD WHERE IS / AS IS
- SPECIFICATIONS & CONDITIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ARE NOT GUARANTEED TO BE ACCURATE. MACHINES ARE SOLD AS IS WHERE IS
- MACHINES ARE SUBJECT TO PRIOR SALE WITHOUT ADVANCED NOTICE
