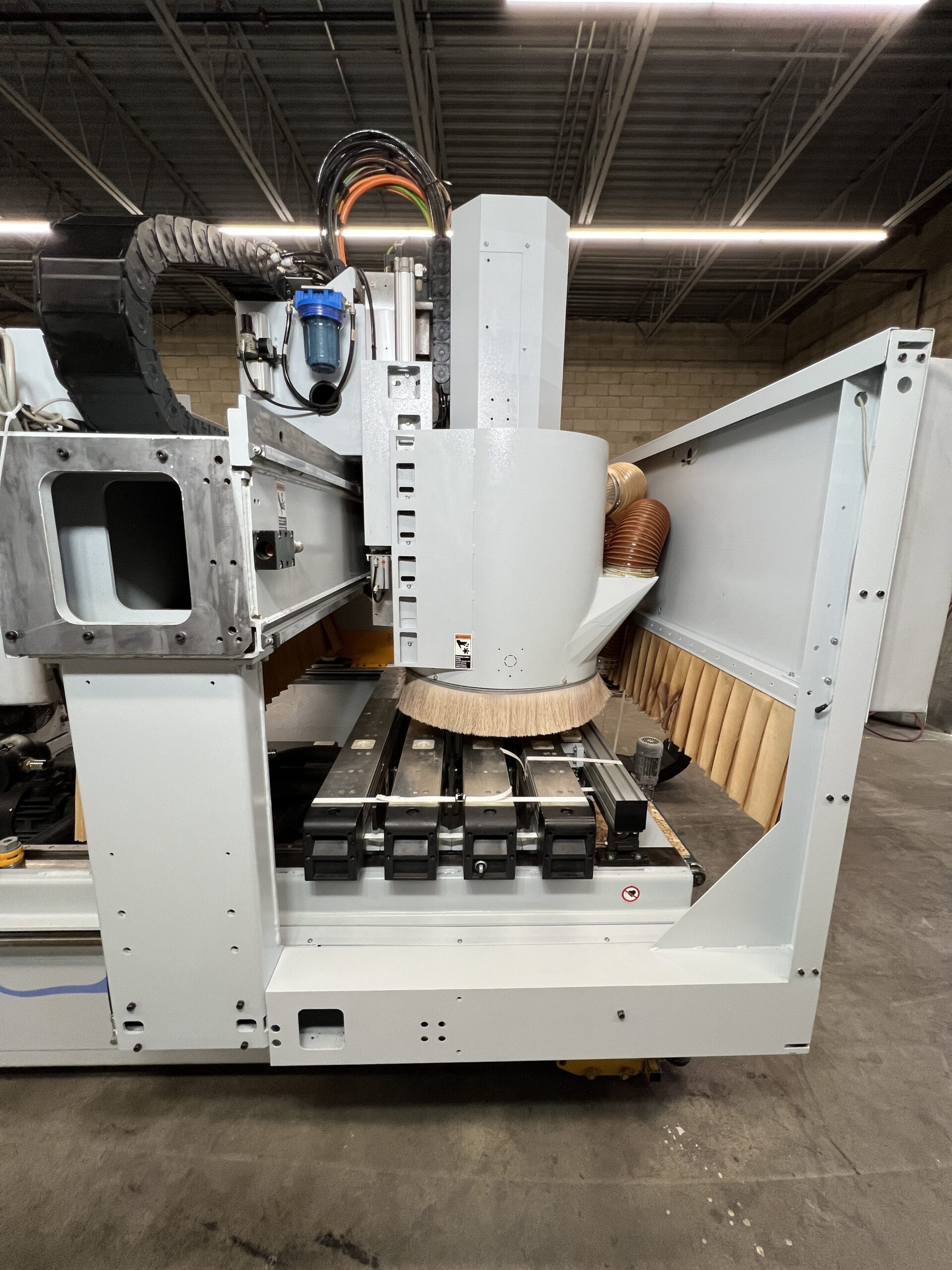

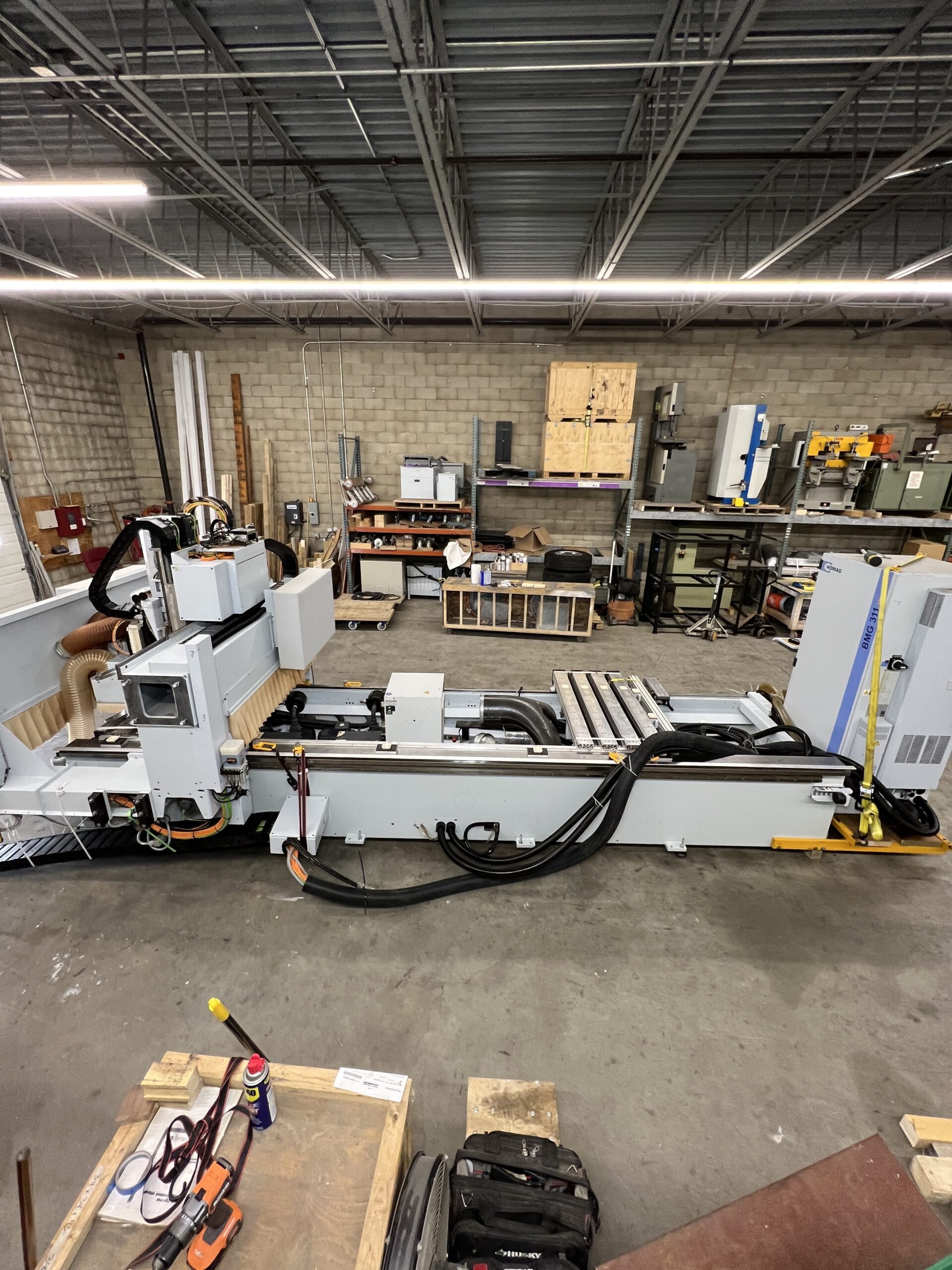

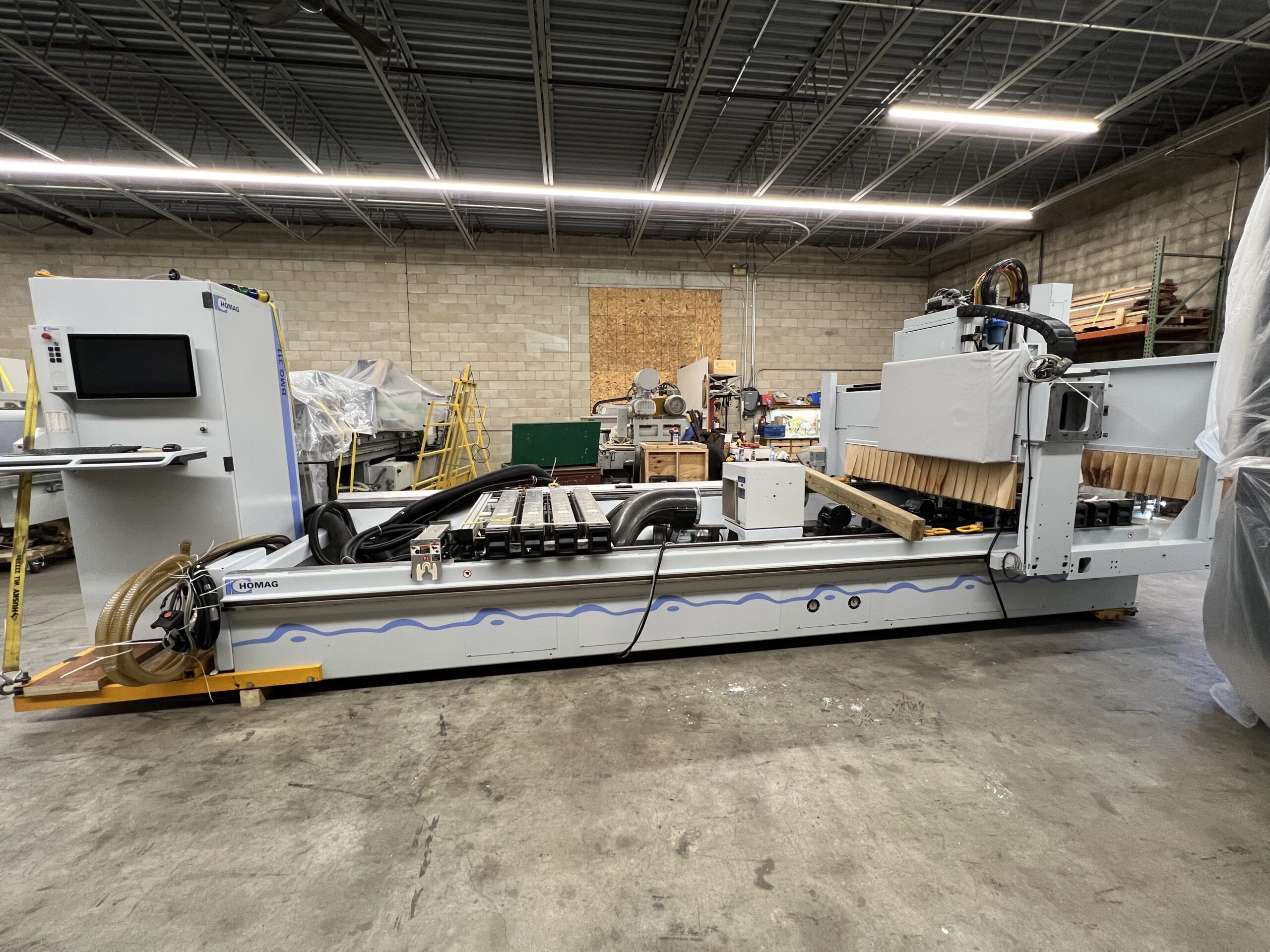

HOMAG BMG 311 5 Axis CNC Router

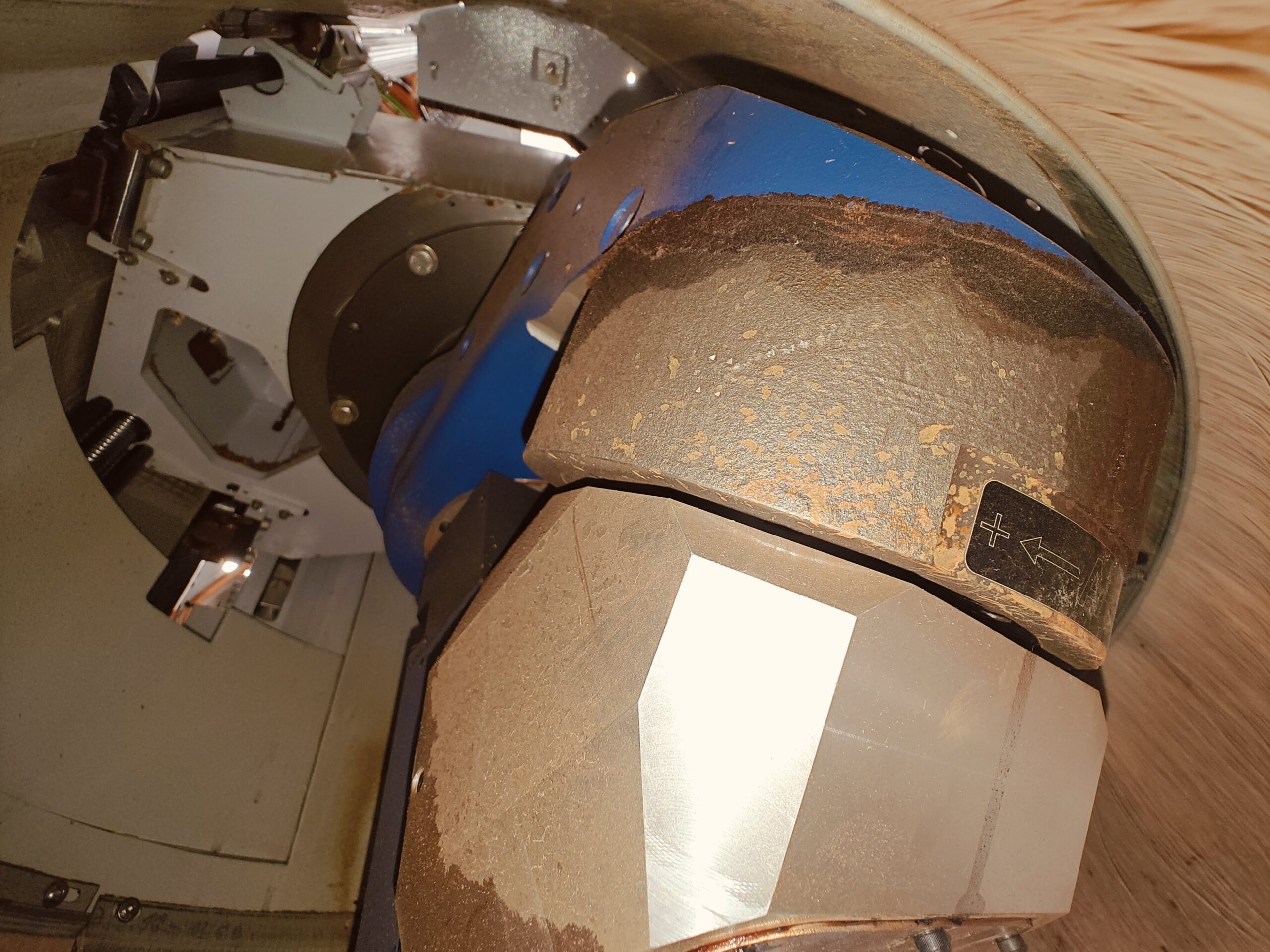

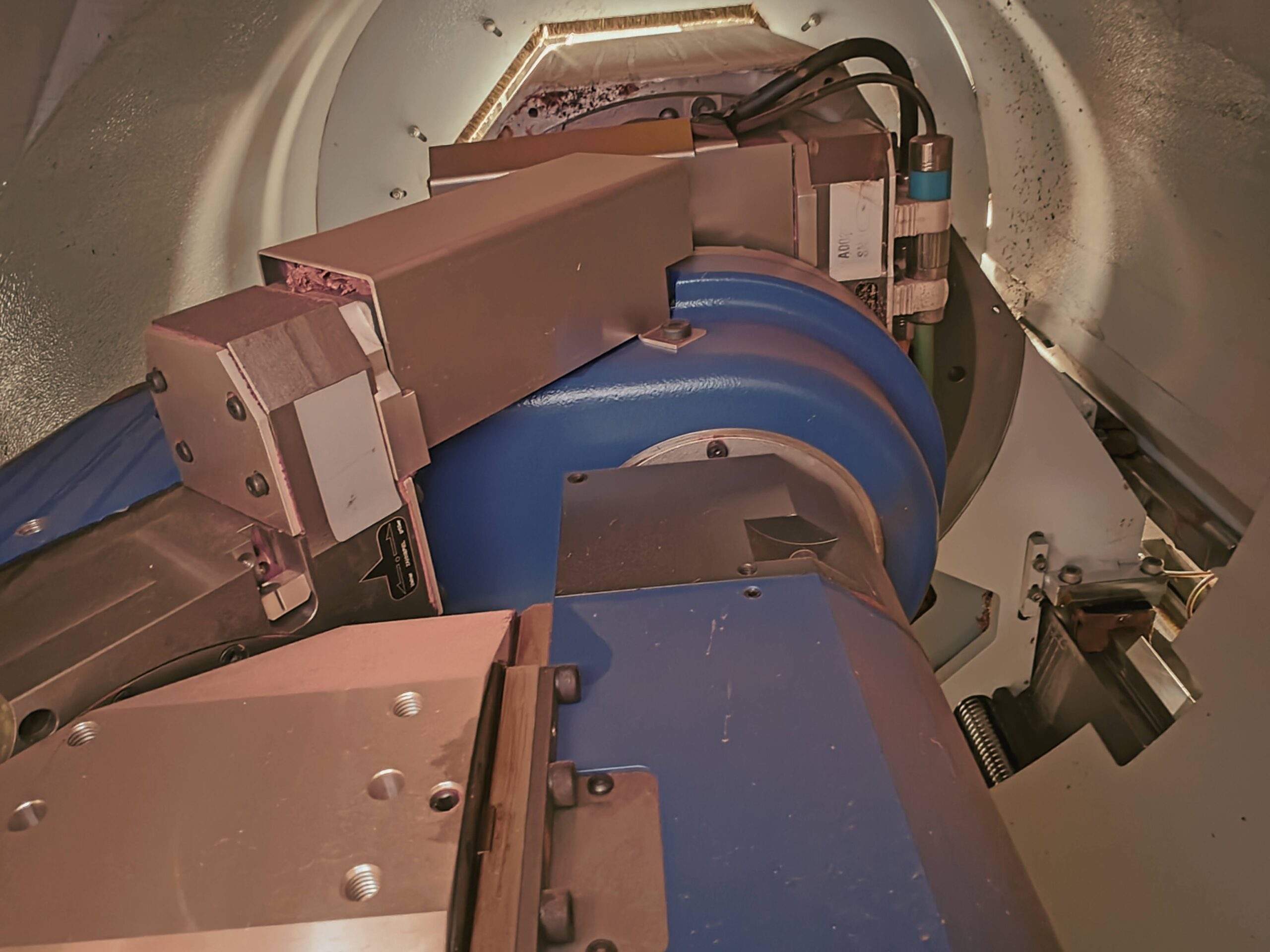

5 Axis Router Spindle – 12kw (16hp)

–  Liquid cooled, Programmable 1,500- 24,000rpm, HSD Tool Holders

–  Maximum tool weight of 6 kg (13.23 lbs.) including tool holder

–  Maximum tool length of 230 mm (9-1/32″) calculated from lower edge of motor spindle for boring and routing tools of 20 mm (25/32″) diameter maximum

–  Maximum tool length of 165 mm (6-1/2″) calculated from lower edge of motor spindle for roughing or profile tools of 80 mm (3-1/8″) diameter maximum

–  Maximum tool diameter of 180 mm (7-3/32″) for routing tools

–  Maximum tool diameter of 350 mm (13-3/4″) for using a saw blade in the optional saw blade chuck (#7942); with tool chuck “A” dimension of 50 mm

14 Position Plate-Type, Ride Along Tool Changer w/ Tool Transfer Spot

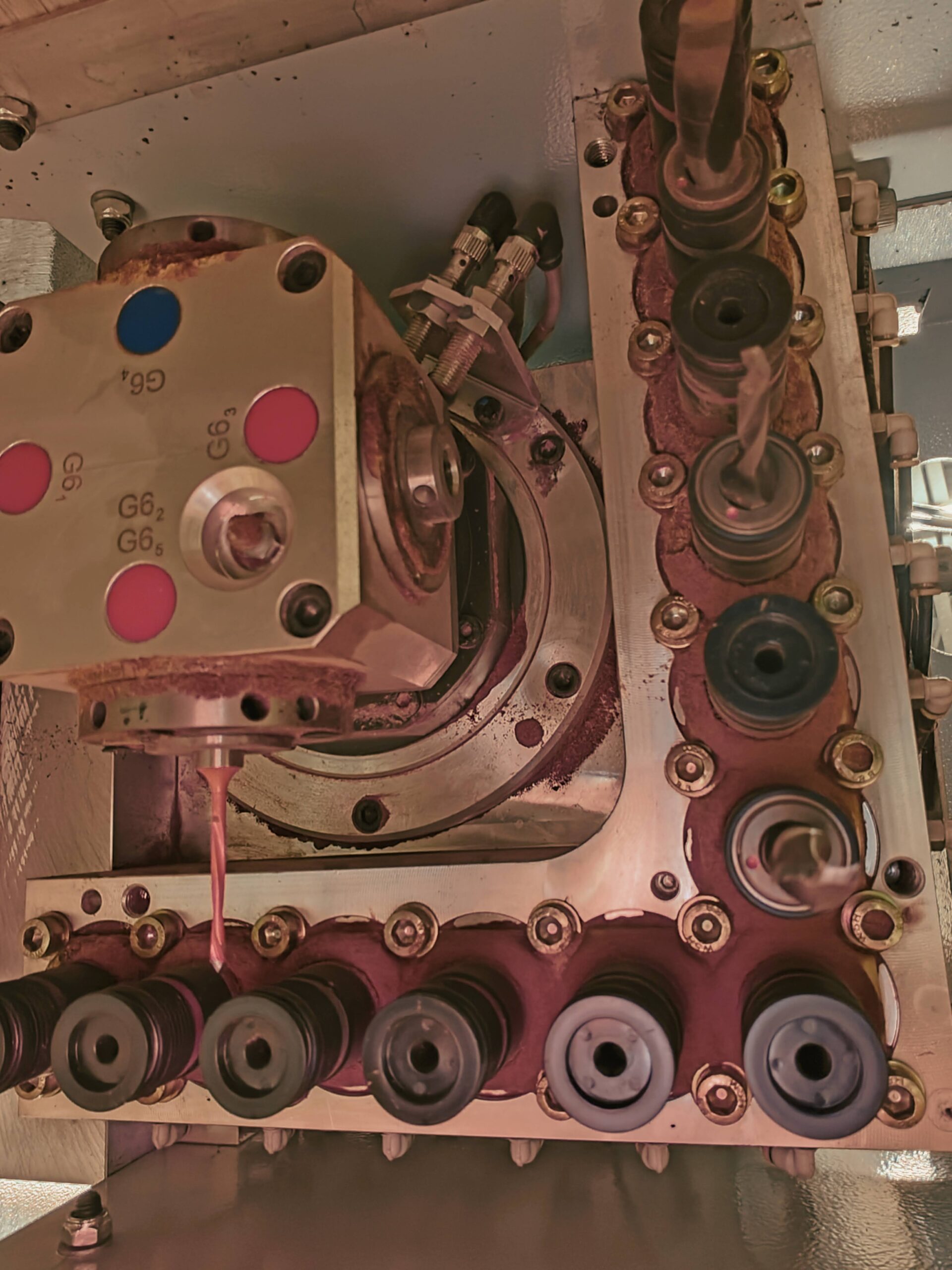

16 Spindle Boring Head  (12vertical and 4Horizontal) (One grooving saw (works in X and Y) )

–   Powered by 2.2kw (3hp) motor

–  Programmable to 7,500rpm

Table Size 4200mm x 1340mm  (165.4″) x (52.75″)

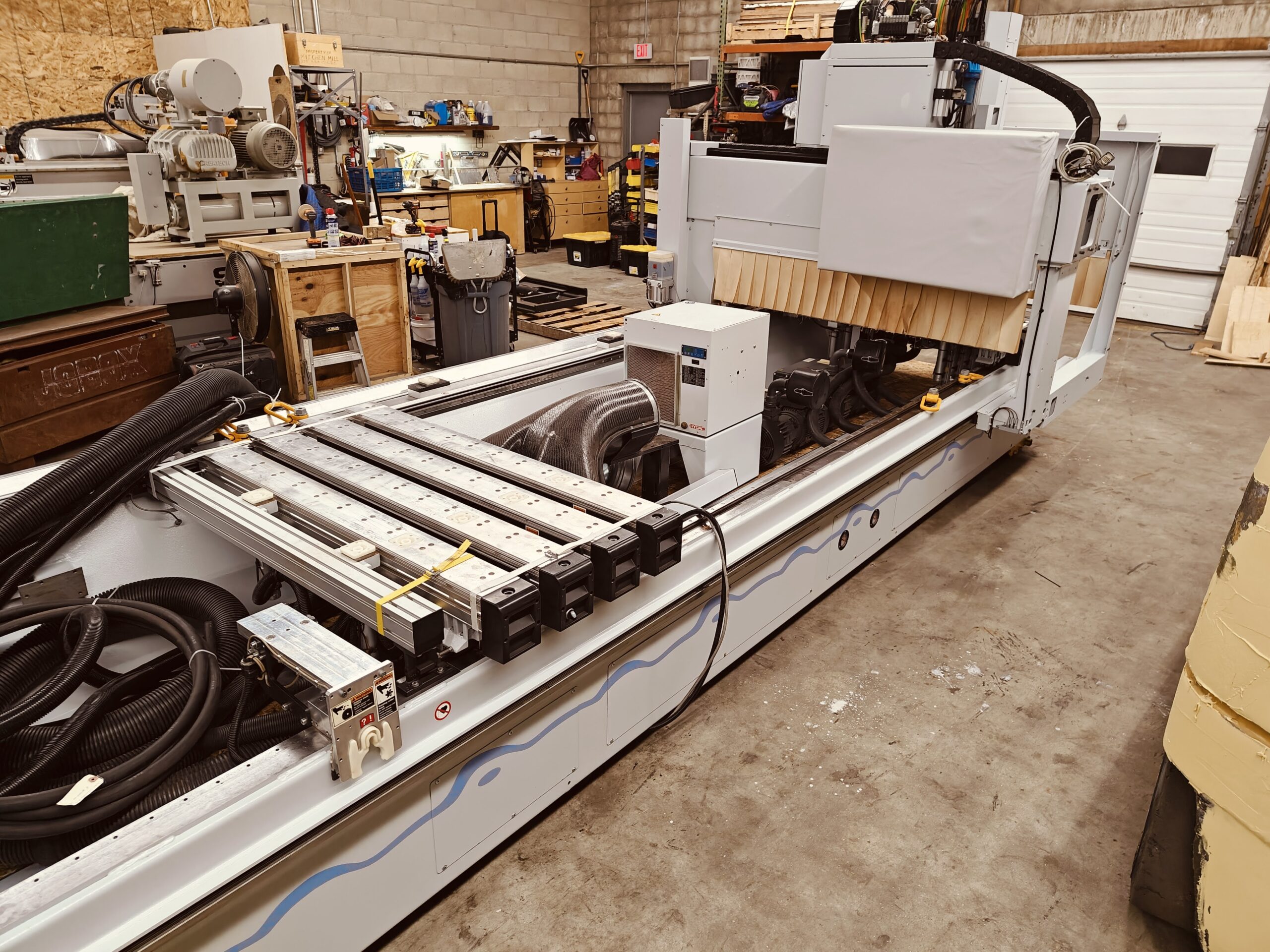

8 Vacuum pod support beams

LED Positioning System

Chip and Waste Conveyor

2 Busch Vacuum Pumps

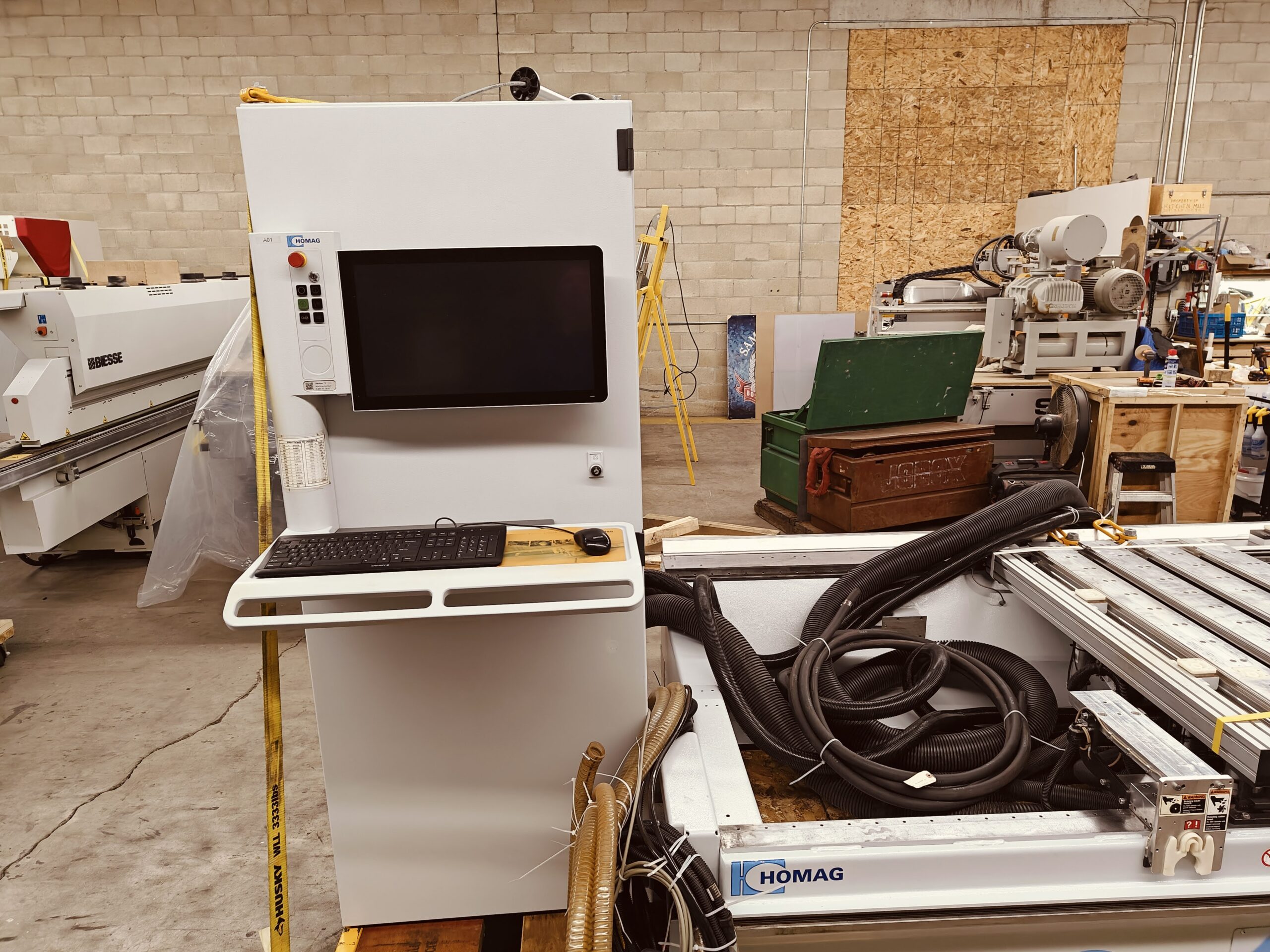

WoodWOP 7 Software Package

**This machine is sold without pods or vacuum clamps. We can order them through Schmalz**
