-powerTouch Program Control -electrical equipment installed per UL regulations -motorized top pressure beam for workpiece thickness adjustment -panel preheating -automatic feed track lubrication system -extended infeed fence with servo control -pneumatically-controlled hard stop at machine infeed to prevent premature workpiece introduction -Joint Trimming Unit for pre-trimming the workpiece edge prior to processing -QA-65 N granulate…

easyTouch Program Control with touch screen automatic 2 positioning indexing of the pressure zone. First pressure roller driven and two (2) idle pressure rollers  Joint Trimming Unit for pre-trimming the workpiece edge prior to processing  Double-Motor End Trimming Unit mounted on linear guides for precision trimming and equipped with program controlled straight to bevel end…

HOMAG HPP-130 3200 (10’) X 3200 (10’) CNC PANEL SAW 10HP MAIN AND SCORING BLADE MOTOR (SHARED) CADMATIC CONTROL WITH ASSISTANCE GRAPHIC POWERTOUCH PC CONTROL AUTOMATIC SIDE PRESSURE DEVICE INTEGRATED INTO SAW CARRIAGE (3) AIR TABLES – (1) 1800 MM X 650 MM AND (2) 1800 MM X 500 MM LABEL PRINTER 5 CLAMPS 60…

CNC DOWEL INSERTER FOR HORIZONTAL DRILLING AND DOWEL INSERTING ENGINEERED TO SPRAY GLUE OR WATER FEATURES A SORBTECH MAIN BEAM TO MINIMIZE VIBRATION PNEUMATIC CONTROL OF CENTER STOP AND RIGHT AND LEFT FENCES OPEN END TABLE FOR MACHINING PARTS LONGER THAN 48” VIBRATING HOPPER FOR AUTOMATIC FEEDING OF DOWELS LARGER 17” DISPLAY AND WOODWOP PROGRAMMING…

VERTICAL CNC MACHINING CENTER FOR DRILLING, GROOVING AND ROUTING TWO HORIZONTIAL DRILL BLOCKS H7 + H7 ON SEPARATE SUPPORTS ROUTER SPINDLE 9 kW (12 hp) 1250 to 24,000 RPM FOUR POSITION HSK TOOL CHANGER GROOVING SAW FOR PROCESSING IN BOTH X AND Y DIRECTION WOODWOP VERISON 6.1 EXTENSION OF WORKING LENGTH TO 3050 MM MINIMUM…

easyTouch Program Control Control panel located at machine infeed for operator convenience Adjustment on pressure beam and infeed fence via digital height indicator Universal automatic magazine for strip and coil feeding Large coil table (800 mm diameter) to accommodate large coils of 3 mm PVC Feed speed: 8 m/min (26 ft/min) Workpiece thickness: 40 mm…

VERTICAL CNC MACHINING CENTER FOR DRILLING, GROOVING & ROUTING DRILL SPINDLES: 13 VERTICAL, 4+2 HORIZONTAL ROUTER SPINDLE 5 KW (7 HP) 1,250 TO 24,000 RPMS TOOL CHANGER 4-POSITION HSK WOODWOP VERSION 6.0 EXTENSION OF WORKING LENGTH TO 3050 MM MINIMUM PART SIZE: 200 MM X 70 MM X 12 MM MAXIMUM PART SIZE: 3050 MM…

EASYTOUCH PROGRAM CONTROL WITH INTEGRATED ELECTRONIC LINE CONTROL JOINT TRIMMING – PRE-MILLING WITH DIAMOND CUTTERHEAD QA-65N GLUE SYSTEM WITH QUICK PURGE SYSTEM 2 MOTOR END TRIM UNIT WITH PROGRAM CONTROL –  STRAIGHT TO BEVEL FINE TRIM UNIT WITH PROGRAM CONTROLLED INDEXING WITH DFC CUTTERHEADS AND COMBINATION RADIUS/STRAIGHT INSERTS NESTED TOP COPY SYSTEM FOR HINGE HOLES…

• HOT MELT GLUE BANDER FOR CONTOUR SHAPES • PROCESSES PVC TAPE, VENEERS AND LAMINATE STRIPS • DIGITAL LENGTH CONTROL FOR COILED MATERIALS • AUTOMATIC EDGE INFEED CONTROLLED BY FOOT ACTIVATED PEDAL. • EDGE BAND THICKNESS 0.5 – 3MM & 10 – 55MM WORKPIECE THICKNESS • FEED RATE 4 – 9 MPM • POWER 230…

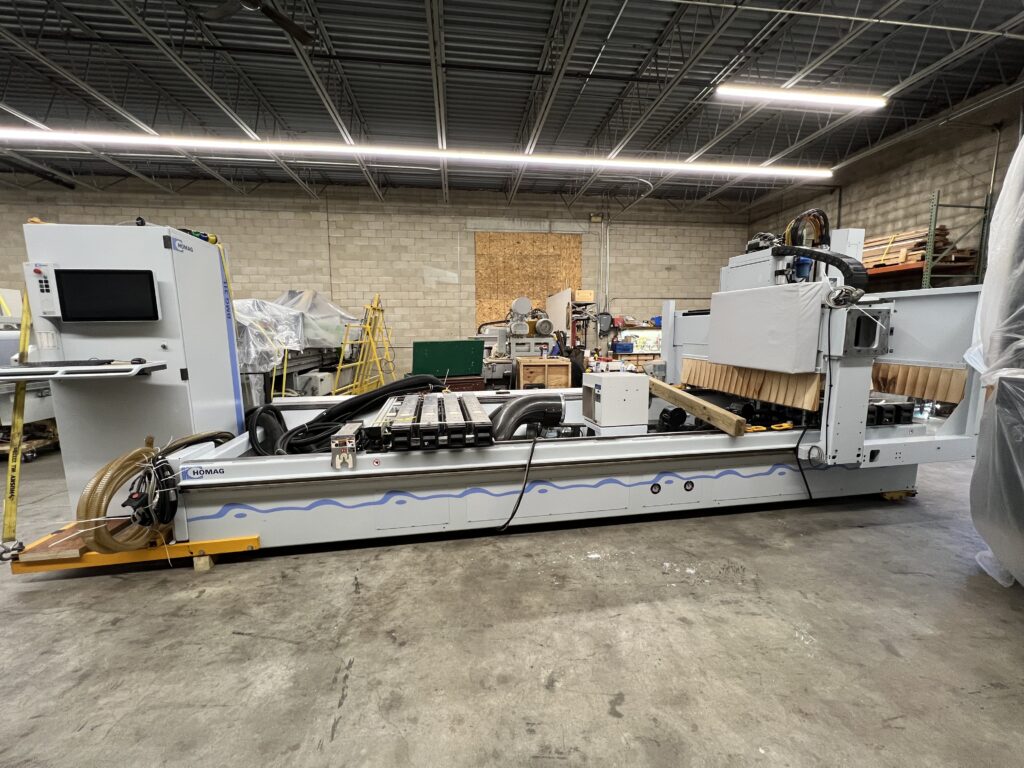

WORKING FIELD: X=4500MM (14,76’) Y=1600MM (5.24’) MAX ROUTING WIDTH 12/16 HP LIQUID-COOLED ROUTER MOTOR WITH INTERPOLATING C-AXIS 14 POSITION CAROUSEL TOOL CHANGER IN REAR 14 POSITION CAROUSEL TOOL CHANGER ON RIGHT SIDE FLEX-5 PLUS PLUS AGGREGATE FOR SAWING/ROUTING/DRILLING FOR ATC 21 SPINDLE VERTICAL DRILLS AND 10 HORIZONTAL DRILLS GROOVING SAW X/Y SWIVELING 8 WORKPIECE CONSOLES…
