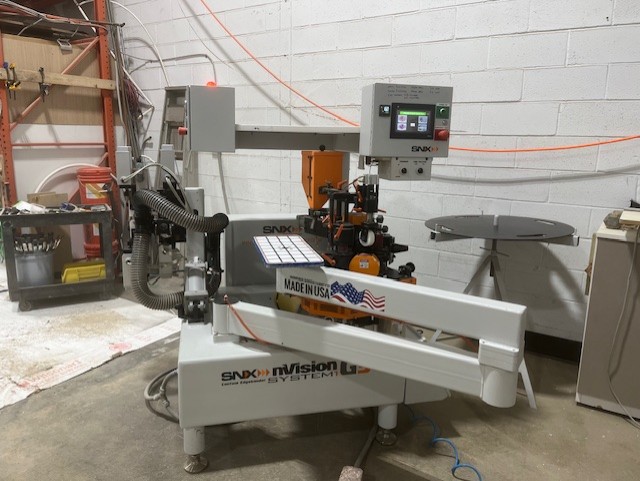

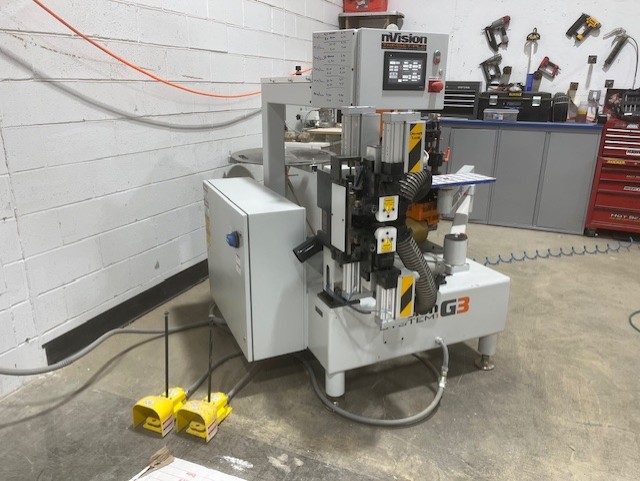

SNX nVision System1 G3 Contour Edgebander

The SNX nVision System1 G3 (Generation 3) series of US-made hot melt contour edgebanders offers any woodworking shop an easy, affordable, and versatile shaped part banding solution. It allows shops to bring contour banding production in-house by being more cost-effective than outsourcing. The wood industry is moving to provide its customers with more and more complex shaped parts in their projects and the nVision allows your company to respond in a faster, more efficient way than ever possible

100% US designed, built & supported – faster parts and service response, lower shipping costs
UL-certified electrical cabinet – fully-compliant with codes
Heavy-duty machined frame – added stability absorbs vibrations that could affect banding quality
Large touch-screen graphical PLC controller – less need for special training or language translation to operate machine
Articulated vacuum pod arm supports parts – maximum panel weight = 230lbs!
Machine can band and trim parts up to 10’ in size! – ideal for closet parts, lockers
Machine designed to apply hot melt EVA (Ethylene Vinyl Acetate) adhesive on 0.5, 1, 2, and 3mm tape – can also band some wood veneers & special tapes
All machine drive systems (spindles, rollers) powered by an up-sized Baldor motor – quiet, reliable power
Spindle drive system uses SNX Armordrive serpentine Kevlar belt – smoother, quieter, longer life operation without the need for lubrication
Triax 3-axis laser system (patent pending) ensures consistently tighter butt joints on panels – for better looking products, consistent performance.
Incredibly tight inner and outer radius bands – can out-band more expensive CNC machines!
Glue pot holds 1kg of adhesive, machine has hopper with laser-guided auto-filling of the glue pot – never run out of glue again
Trimming unit trims top and bottom tape overhang of finished bands using same vacuum arm; trim station retracts pneumatically to allow swings of large parts during banding process
